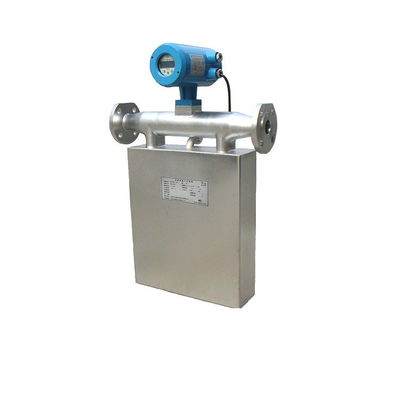

Name: Measuring Gas RS485 HART Water Proof IP67 Factory Coriolis Mass Flowmeter
Brand: Kaifeng Meihe Automation Instrument Co., Ltd.
SKU: MHLD
Availability: InStock

Home Products TOP SALE

Measuring Gas RS485 HART Water Proof IP67 Factory Coriolis Mass Flowmeter

Product Details:

Place of Origin:	Henan, China
Brand Name:	MH
Model Number:	MHLD

Contact Now

Detailed Product Description

Warranty:	2 Years	Customized Support:	OEM, ODM, OBM, Software Reengineering
Type:	Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters	Product Name:	Coriolis Mass Flowmeter
Display:	LcD (or LED) LcD Chinese (English Or Russian)	Measurement Item:	Instantaneous, Cumulative Flow, Temperature, Density
Accuracy:	01%~015%,0.2%	Pressure Level:	30 MPO, 4 MPa, 2.5 MPa
Signal Output:	4mA~20mA, OH2~10kHz	Communication Method:	RS485/MODBUS Or HART
Material:	Measuring Tube 316L, Shell 304	Protection Class:	IP67
Working Temperature:	0°C~+40°C,(-40°C*+40°C)

Applicable Media	Conventional liquids, multi-flow liquids, high-viscosity liquids, slurriescontaining solids, gases with high density or high pressure, etc.
Measurement item	Instantaneous flow, cumulative flow, temperature, density (percentageof each component, alcohol content), etc.
Display	LCD (or LED) LCD Chinese (English or Russian)
Mass Flow Measurement Accuracy	01%~015%,0.2%
Density Measurement Range	0.2g/cm'3.5g/cm'3
Density Measurement Accuracy	0.001g/cm'3
Tremperature Measurement Range	-60℃~+200℃,(-200℃ +350%℃ )
TemperatureMeasurement Accuracy	1℃
Pressure Level	30MPa, 4MPa, 2.5MPa (special reguirements, can be customized)
Signal output	4mA~20mA, OH2~10kHz (pulse signal)
Communication Method	RS485/MODBUS Or HART
Transmitter Form	Panel mounted cabinet type, field installation type
Material	Measuring tube SUS316L, shell SUS304 (special material requirements, can becustomized)
Explosion-proof grade	Exib[ib]IICT6Gb
Protection class	IP67
Batch control Relay contact capacity	24V/0.1A
Batch control Relay contact Form	Normally open
Working Temperature	0°C~+40°C,(-40°C+40°C)
WorkingEnvironment Humidity	<90% RH, non-condensing
Atmospheric Pressure	86kPa -106kPa
Rated Power	(24+10%)voc, additionally equipped with switching power supply(110-240)VAC
Rated power	<10W

Q: Are you a factory or a trading company?

We are original manufacturer for flow instrument in Kaifeng, Henan, China. We warmly welcome you come and visit our factory. Video factory walk through is also available

Q: Can I customize my logo and name on the label and the body?

A: Sure thing, we support 1 set customization for logo, text, and painting on product label, body, packing case, and so on.

Q: Can you provide installation videos or manuals for us?

A: No problem, we'll provide tutorials for install ation for you. Forall our client, we'll make a service group with senior engineer 1 to 1 consult 24/7.

Q: What's your warranty?

A: Our warranty for different product type is between 12 months to 60 months.

Q: After I paid, how long for delivery?

A: To boost the effciency, we can arrange all the materials and components before your payment. So once the payment is received, the manufacture and calibration time can be reduced to 2-5 days. Then the delivery will take 3-7 days normally.

Q: How to pay?

A: We support T/T, Western Union, PayPal, Credit Card, Apply Pay, Google Pay, etc.
