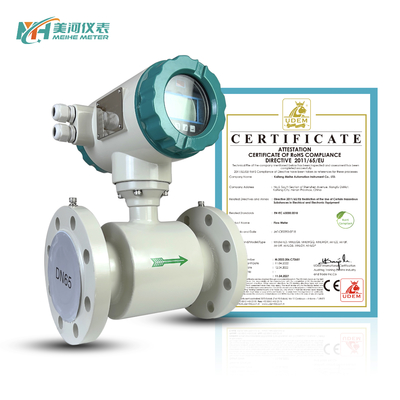

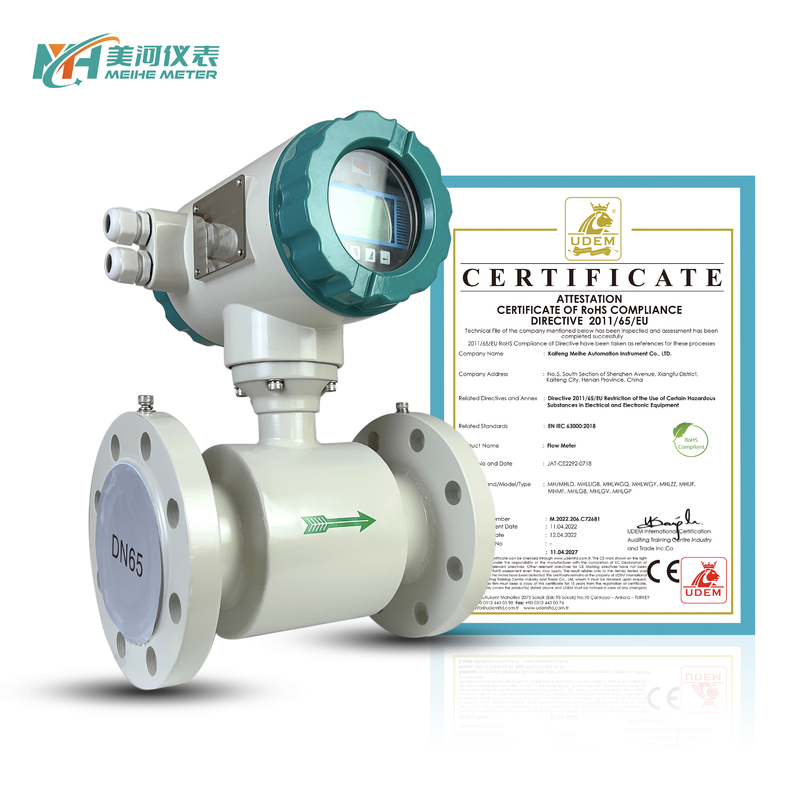

Electromagnetic Flowmeter
Electromagnetic flowmeter is a velocity type flowmeter used for flow measurement based on Faraday's electromagnetic induction law. it is suitable for industrial pipe diameters ranging from DN3 to DN3000. The output signal is linear with the measured flow rate, with high accuracy. it can measure acid.alkali, salt solutions, water, sewage, corrosive liquids with a conductivity of > 5us/cm, as well as fluids such as mud, slurry, pulp, etc
Nominal Diameter
L
H
D
d0
n
15
200
160
95
14
4
20
200
167
105
14
4
25
200
169
115
14
4
32
200
185
140
18
4
40
200
193
150
18
4
50
200
206
165
18
4
65
250
224
185
18
4
80
250
241
200
18
8
100
250
263
220
18
8
125
250
295
250
18
8
150
300
325
285
22
8
200
350
383
340
22
12
250
450
440
405
26
12
300
500
498
460
26
16
350
550
553
520
26
16
400
600
608
580
30
16
450
600
665
640
30
20
500
600
727
715
33
20
600
600
840
840
36
20
700
700
895
895
30
24
800
800
1002
1015
33
24
900
900
1107
1115
33
28
1000
1000
1222
1230
36
28
1200
1200
1437
1405
33
32
1400
1400
1663
1630
36
36
1600
1600
1863
1830
36
40
If you need to customize the length or other dimensions, please contact our specialist at any time.
Diameter
Flow range(m3/h)
(mm) (m3/h)
0.1~0.5(m/S) (m3/h)
0.5~5m/SRecommend flow range(m3/h)
5~10(m/S) (m*/h)
DN10
0.028~1.414
0.14~1.4
1.4~2.8
DN15
0.06~0.3
0.3~3.0
1.4~2.8
DN15
0.06~0.3
0.3~3.0
3.0~6.0
DN20
0.114~0.57
0.57~5.7
5.7~11.4
DN25
0.114~0.57
0.9~9.0
9.0~18
DN32
0.29~1.5
0.29~1.5
15~30
DN40
0.45~2.2
2.2~22
22~44
DN50
0.707~3.5
3.5~35
35~70
DN65
0.45~2.2
2.2~22
22~44
DN80
1.81~9
9-90
90~180
DN80
1.81~9
9-90
90~180
DN125
4.42-~22
22~220
220~440
DN150
6.36~32
32~320
320~640
DN200
11.3~57
57~570
570~1140
DN250
17.7~88.5
88.5~850
850~1700
DN300
25.45~127.8
127.8~1278
1278~2556
DN350
34.6~173
173~1730
1730-3460
DN400
45.2~226
226~2260
2260~4520
DN450
57.3~287
287~2870
2870~5740
DN500
70.7~354
354~3540
3540~7080
DN600
102~510
510~5100
5100~10200
DN700
139~695
695-6950
6950~13900
DN800
181~905
905~9050
9050~18100
DN900
229~1145
229~1145
11450~22900
DN1000
283~1415
1415~14150
14150~28300
DN1200
407~2035
2035~20350
20350~40700
DN1400
554~2770
2770~27700
27700~55400
DN1400
554~2770
2770~27700
27700~55400
DN1600
723~3615
3615~36150
36150~72300

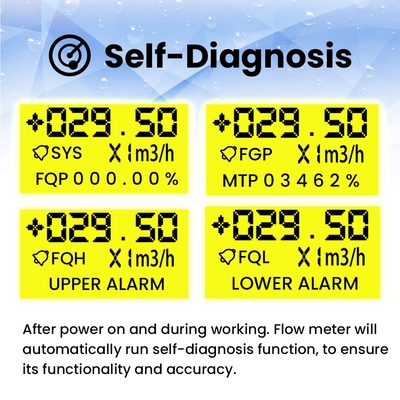

After power on and during working. Flow meter will automatically run self-diagnosis function, to ensure its functionality and accuracy.
Q:Can I customize my logo and name on the label and the body?
A: Sure thing, we support 1 set customization for logo, text, and painting on product label, body, packing case, and so on.
Q: Can you provide installation videos or manuals for us?
A: No problem, we'll provide tutorials for install ation for you. Forall our client, we'll make a service group with senior engineer 1 to 1 consult 24/7.
Q: What's your warranty?
A: Our warranty for different product type is between 12 months to 60 months.
Q: After I paid, how long for delivery?
A: To boost the effciency, we can arrange all the materials and components before your payment. So once the payment is received, the manufacture and calibration time can be reduced to 2-5 days. Then the delivery will take 3-7 days normally.
Q: How to pay?
A: We support T/T, Western Union, PayPal, Credit Card, Apply Pay, Google Pay, etc.
