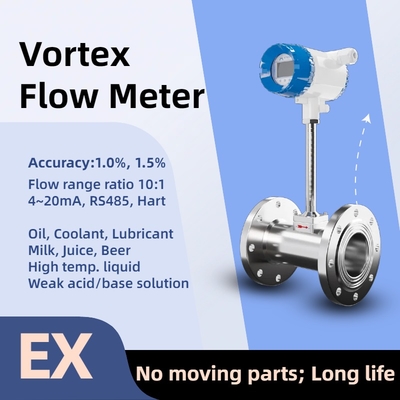

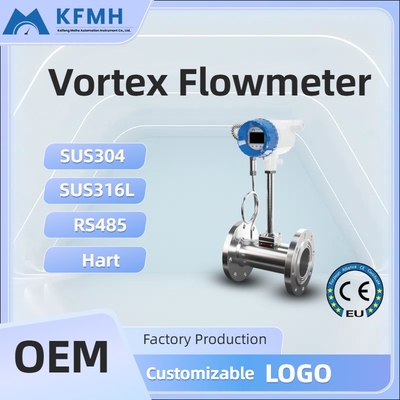

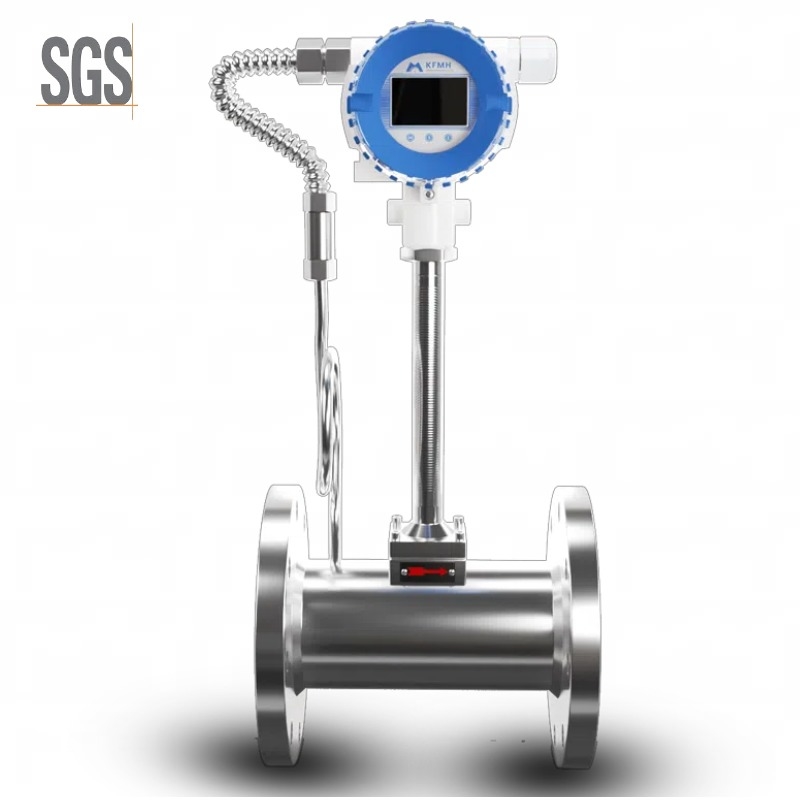

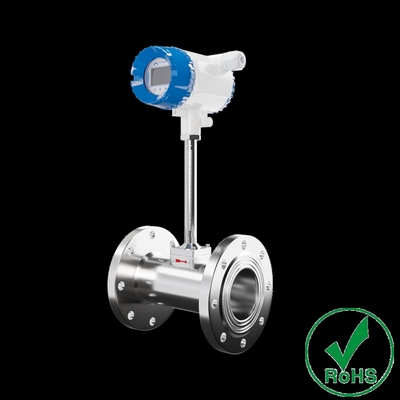

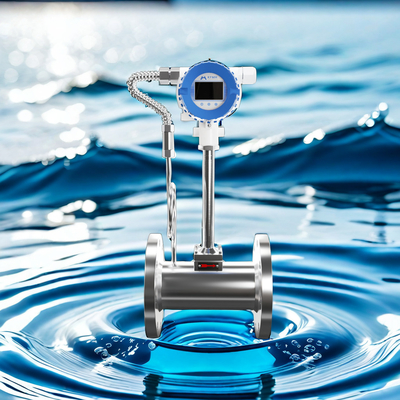

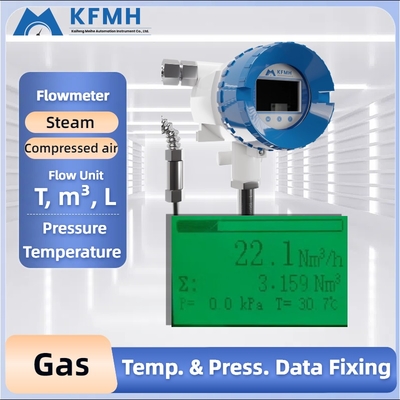

DN25 Flow Meter Transmitter Vortex Flow Meters for Lpg Steam Flowmeter ANSI Flange

Product Details:

Place of Origin:	Henan, China
Brand Name:	KFMH
Model Number:	MHLUGB

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM, ODM, OBM, Software Reengineering
Type:	Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Vortex Flowmeters, Steam Flowmeters, Compressed Air Flowmeter	Material:	SUS304, SUS316L
Product Name:	DN25 Flow Meter Transmitter Vortex Flow Meters For Lpg Steam Flowmeter	Medium:	Liquid/Gas
Accuracy:	0.5%/ 1.0%/ 1.5%	Power Supply:	220VAC/ 24VDC/ Battery
Output:	4-20mA/ Pulse/ RS485	Communication:	RS485/ Modbus/ HART
Pressure:	1.6Mpa	Body Material:	SUS304/ SUS316L
Connection:	Flange/ Clamp/ Thread	Protection Class:	IP65/ IP68

Product Description

Product Name	DN15 -DN300
Accuracy	Liquid: 0.5%R; Gas: 1.0%R
Pressure	1.6MPa, 4.0MPa, Customized
Temperature	-40°C - +350°C
Output signal	Pulse, Frequency,4-20mA,RS485
Communication	MODBUS,HART
Power Supply	24V DC,3.6V Battery Powered
Flow Range	Liquid: 0.4-7m/s; Gas: 4-60m/s;Steam:5-70m/s
IEP ATEX	II1G Ex ia lIC T5 Ga

Instrument diameter (mm)	liquid		Gas
Instrument diameter (mm)	Measuring range (m3/h)	Output frequency range (Hz)	Measuring range (m3/h)	Output frequency range (Hz)
15	0.3 - 6	88 - 580	2.2 - 38	240 - 2350
20	0.6 - 12	38 - 422	4 - 50	210 - 2132
25	1.2 - 16	25 - 336	8 - 80	190 - 2300
32	1.6 - 26	15 - 260	15 - 150	150 - 1496
40	2 - 40	10 - 200	27 - 205	140 - 1040
50	3 - 60	8 - 160	35 - 380	94 - 1020
65	4 - 65	6 - 160	68 - 680	80 - 807
80	7 - 130	4.1 - 82	86 - 1100	55 - 690
100	15 - 220	4.7 - 69	133 - 1700	42 - 536
125	20 - 250	3 - 41	230 - 2500	38 - 416
150	30 - 450	2.8 - 43	347 - 4000	33 - 380
200	45 - 800	2 - 31	560 - 8000	22 - 315
250	65 - 1250	1.5 - 25	890 - 11000	18 - 221
300	95 - 2000	1.2 - 24	1360 - 18000	16 - 213
(300)	100 - 1500	5.5 - 87	1560 - 15600	85 - 880
(400)	180 - 3000	5.6 - 87	2750 - 27000	85 - 880
(500)	300 - 4500	5.6 - 88	4300 - 43000	85 - 880
(600)	450 - 6500	5.7 - 89	6100 - 61000	85 - 880
(800)	750 - 10000	5.7 - 88	11000 - 110000	85 - 880
(1000)	1200 - 17000	5.8 - 88	17000 - 170000	85 - 880
