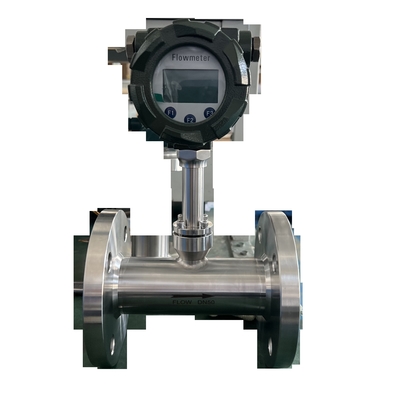

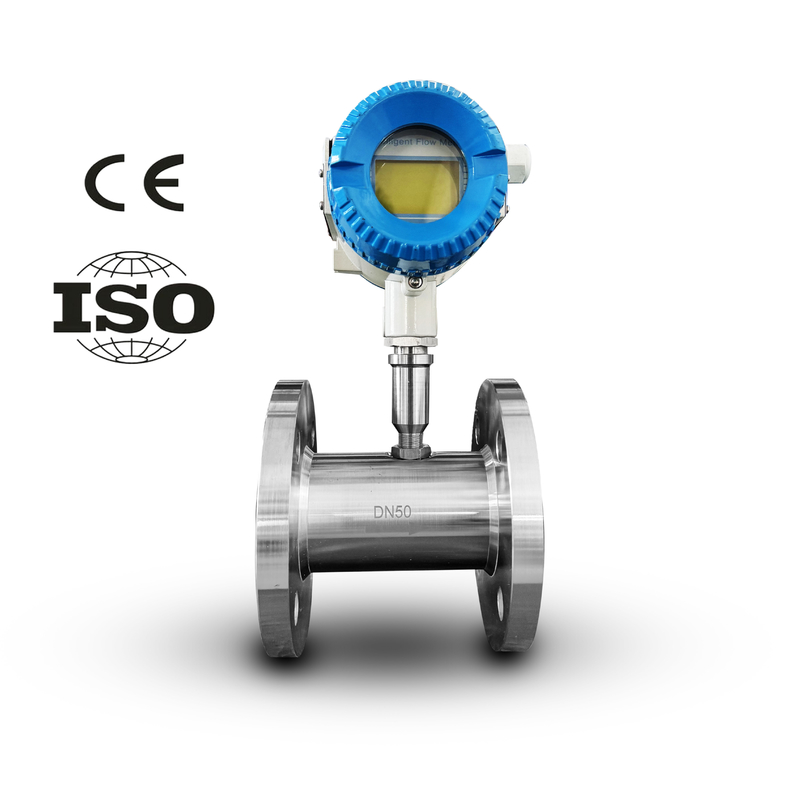

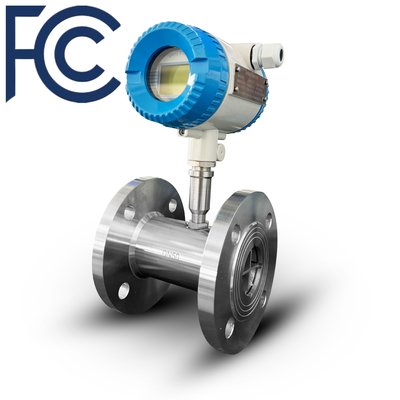

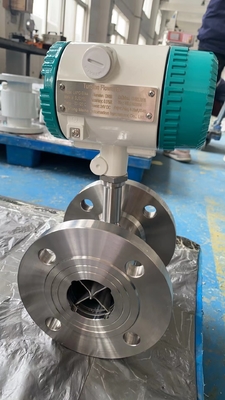

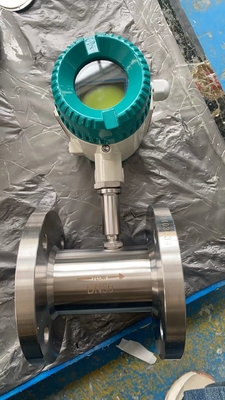

Name: Battery Nuflo Turbine Flow Meter Digital Milk Voleum Measurement Flowmeters
Brand: Kaifeng Meihe Automation Instrument Co., Ltd.
SKU: MHLWGY
Availability: InStock

Home Products For Non-Conductive Liquid

Battery Nuflo Turbine Flow Meter Digital Milk Voleum Measurement Flowmeters

Product Details:

Place of Origin:	Henan, China
Brand Name:	KFMH
Model Number:	MHLWGY

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM, ODM, OBM, Software Reengineering
Accuracy:	±0.5%	Type:	Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters, Turbine Meters
Material:	SUS304, SUS316L	Product Name:	Lpg Flow Meter Oil Alcohol Test Sensors Modbus Flowmeter Price
Media:	Liquid, Gas	Accuracy:	0.5%/1.0%
Output Signal:	4-20mA/Pulse/RS485	Pressure:	1.6Mpa
Power Supply:	220VAC/24VDC	Body Material:	SUS304, 316
Payment:	T/T, Credit Card, Paypal	Delivery Time:	3-5 Days

Diameter	Flow Range	Connection Type	Nominal Pressure	Customized Working Pressure (MPa)
DN4	0.04~0.25	Thread Connection	6.3MPa	10/ 16/ 25
DN6	0.1~0.6	Thread Connection	6.3MPa	4.0 /6.0/ 10 /16 /25
DN10	0.2~1.2	Thread Connection	6.3MPa	4.0 /6.0/ 10 /16 /25
DN15	0.6~6	Thread Connection	6.3MPa	4.0/ 6.3/ 10 /16/25
DN15	0.6~6	Flange Connection	4.0MPa	4.0/ 6.3/ 10 /16/25
DN20	0.8~8	Thread Connection	6.3MPa	4.0/ 6.0 /10 /16/ 25
DN20	0.8~8	Flange Connection	4.0MPa	4.0/ 6.0 /10 /16/ 25
DN25	1~10	Thread Connection	6.3MPa	4.0/ 6.3/ 10/ 16 /25
DN25	1~10	Flange Connection	4.0MPa	4.0/ 6.3/ 10/ 16 /25
DN32	1.5~15	Thread Connection	6.3MPa	4.0/ 6.0/ 10 /16 /25
DN32	1.5~15	Flange Connection	4.0MPa	4.0/ 6.0/ 10 /16 /25
DN40	2~20	Thread Connection	6.3MPa	4.0/ 6.3/ 10 /16/ 25
DN40	2~20	Flange Connection	4.0MPa	4.0/ 6.3/ 10 /16/ 25
DN50	4~40	Thread Connection	6.3MPa	4.0/ 6.3 /10 /16 /25
DN50	4~40	Flange Connection	4.0MPa	4.0/ 6.3 /10 /16 /25
DN65	7~70	Thread Connection	1.6MPa	4.0/ 6.3/ 10 /16/ 25
DN65	7~70	Flange Connection	1.6MPa	4.0/ 6.3/ 10 /16/ 25
DN80	10~100	Thread Connection	1.6MPa	4.0/ 6.3 /10 /16/ 25
DN80	10~100	Flange Connection	1.6MPa	4.0/ 6.3 /10 /16/ 25
DN100	20~200	Thread Connection	1.6MPa	2.5 /4.0/ 6.3/ 10/ 16/ 25
DN100	20~200	Flange Connection	1.6MPa	2.5 /4.0/ 6.3/ 10/ 16/ 25
DN125	25~250	Flange Connection	1.6MPa	4.0/ 6.3/ 10 /16/ 25
DN150	30~300	Flange Connection	1.6MPa	4.0 /6.3/ 10/ 16/ 25
DN200	80~800	Flange Connection	1.6MPa	4.0 /6.3/ 10 /16 /25
